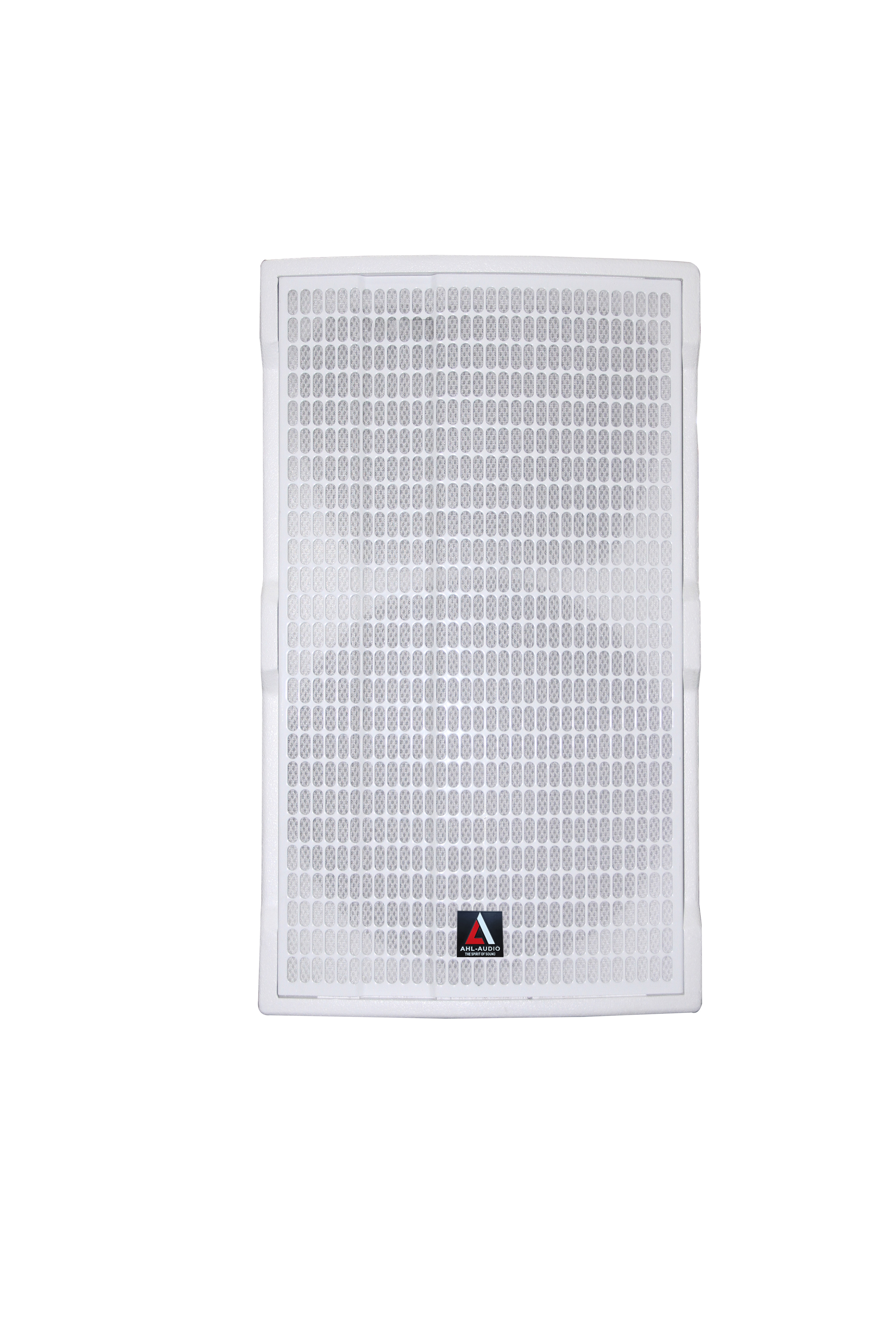

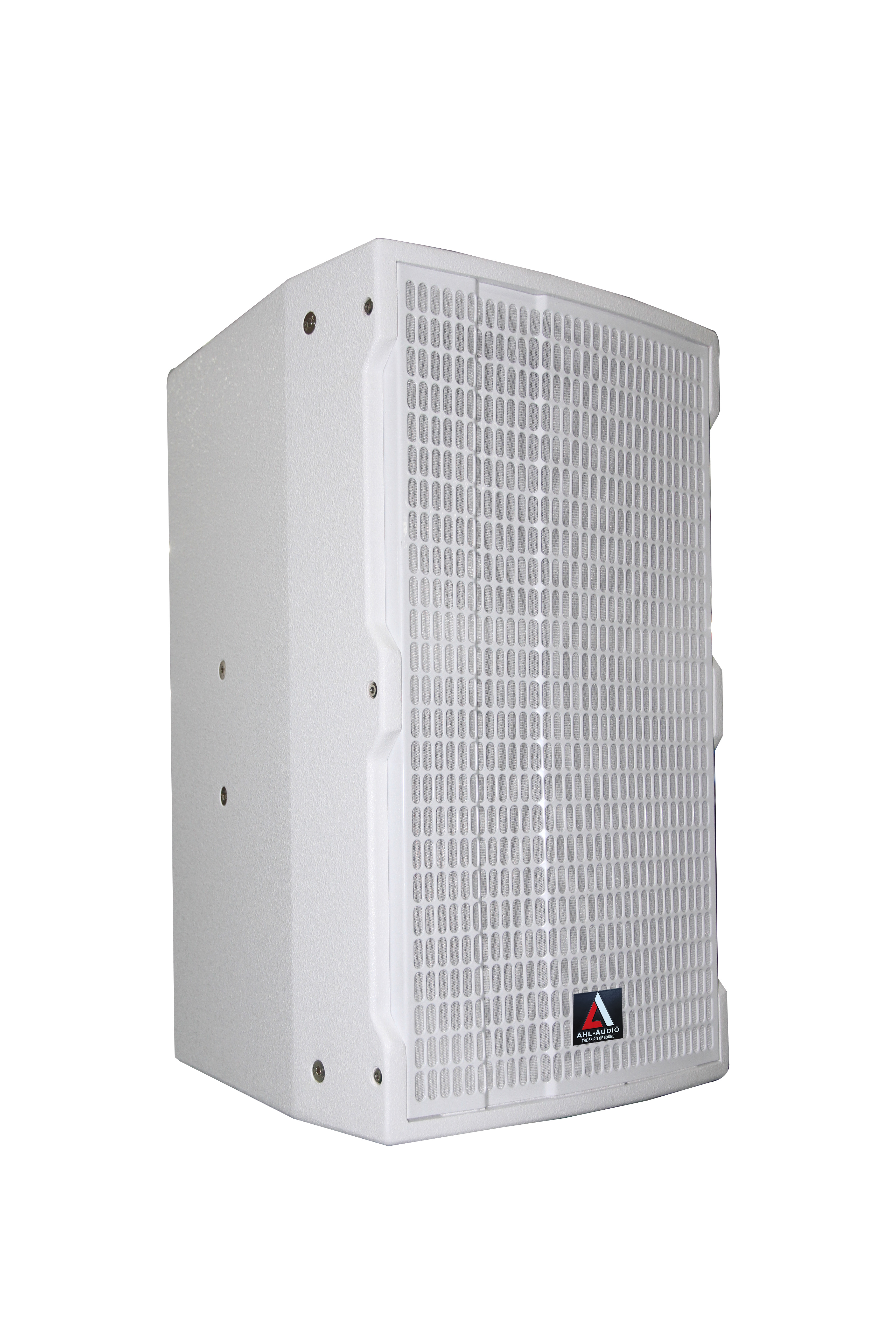

AJ-712
AJ-712, one set is conbine with one passive AJ-118( signal 18 subwoofer).
Two AJ-712 speaker or two AJ-118 loudspeaker. AJ-118 (1×18sub)
SUB is bass-reflex subwoofer specifically designed for use with
the AJ-118 providing dynamic performance with high impules
program, a tight full sound and high efficiency. Its extra
large bass-reflex tunnel guarantees high sound
pressure while minimizing power compression
and air turbulence noise..
| Model | AJ-712 |
| Frequency Response | 50Hz-20KHz |
| Directivity Angle | H90°×V60° |
| Long-term Power(RMS) | 400W |
| Power peak handing | 800W[5Min] |
| Impedance | 8 ohms |
| Sensitivity | 98dB[2.83v/m] |
| Maximum SPL | 122dB |
| Connection | 2×NL 4 speakon |
| Enclosure Construction | 15-Birch Plywood |
| Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
| Dimensions(H×W×D) | 600×350×382mm |
| Low | 15 IN×1[380mm] |
| High | 2 IN×1[44mm] |
| N.W. | 23Kg |
| Model | AJ-718 |
| Frequency Response | 45Hz-250Hz |
| Long-term Power(RMS) | 700W |
| Power peak handing | 1400W[5Min] |
| Impedance | 8 ohms |
| Sensitivity | 100dB[2.83v/m] |
| Maximum SPL | 122dB |
| Connection | 2×NL 4 speakon |
| Enclosure Construction | 18-Birch Plywood |
| Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
| Dimensions(H×W×D) | 508×534×600mm |
| Low | 18 IN×1[460mm] |
| N.W. | 36Kg |
