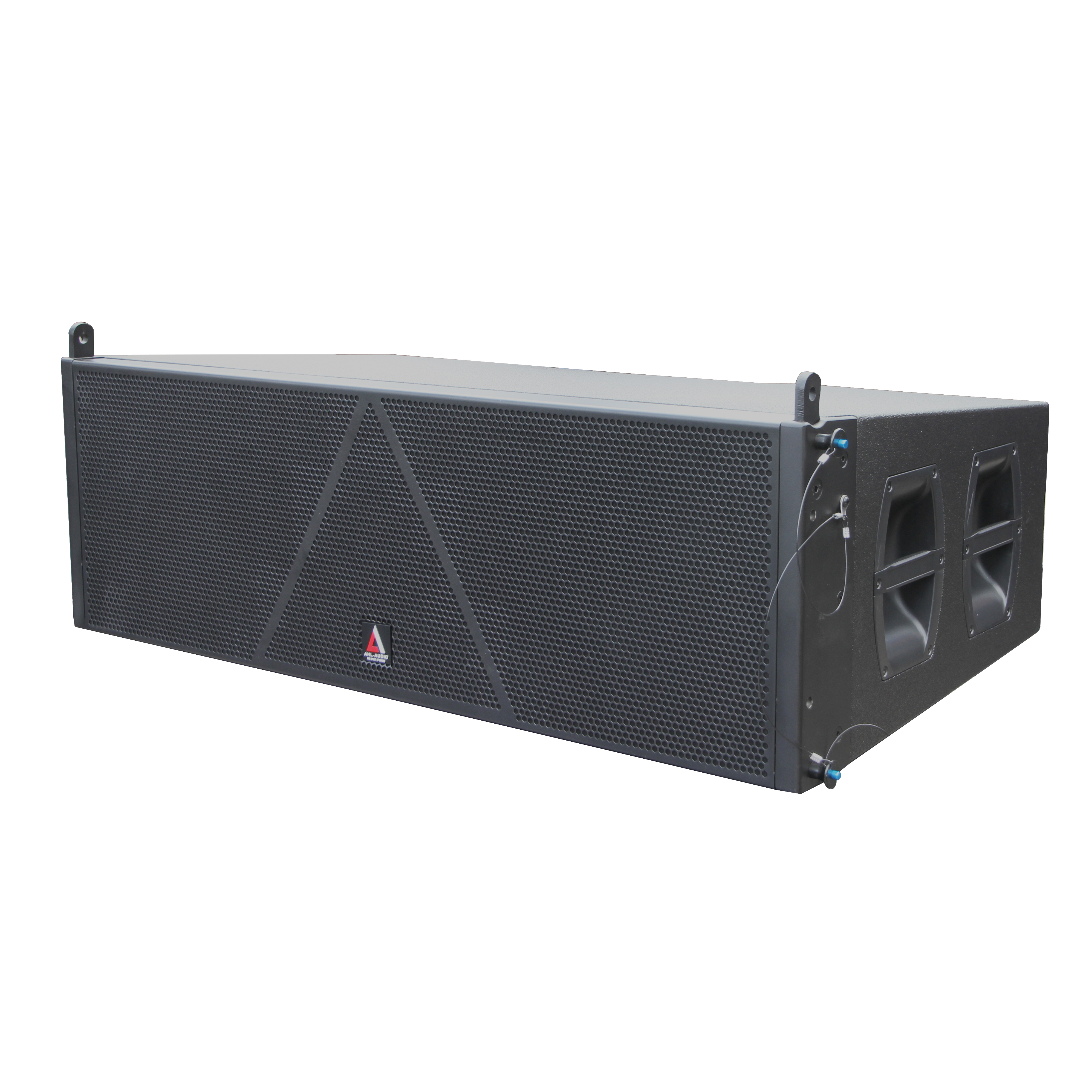

AL-212 is a large format line array system that maintain excellent acoustics while putting 8pcs or 10pcs speakers along with wave guide inside the limited space of an enclosure.
Dual 12" utilizes all neodymium woofer & drivers, which ensures high sensitivity, compact size and less weight. Up to 148dB sensitivity delivered by two compression tweeters with 72mm titanium voice coil loaded in an integrated wave guide which meets all physics criteria of wave sculpture technology. With double 10" mid-range drivers, which are able to couple mid range smoothly and completely, no extra adjustment from EQ even needed . Two 12" woofers placed as V shape side by side with the mid-range. The special formulated carbon fiber cone gives ultra strengthen and lightness to mi-low frequency.
Outdoor use with black catalyzed polyurethane paint finishing. AL-212 works together with smart & predictable rigging system, the extraordinary speaker is the perfect choice which fits for all kind of touring applications.
AL-221 is a dual 21" passive subwoofer speaker, which is specially designed to work with passive AL-212. Outdoor use with black catalyzed polyurethane paint finishing. AL-221 subwoofer is the perfect choice which fits for all kind of touring applications.
Model AL-212 Frequency Response 40Hz-18KHz Directivity Angle H100°×V10° Impedance 8ohms/ 8ohms/8ohms(HF.MF.LF) Long-term Power(RMS) 300W/400W/800W(HF.MF.LF) Power peak 600W/800W/1600W(HF.MF.LF) Sensitivity 123dB/123dB/114dB(HF.MF.LF) Maximum SPL 139dB/132dB/130dB(HF.MF.LF) Connection 2×NL8speakon Enclosure Construction 15-Birch Plywood Cabinet Surface Treatment Black Catalyzed Polyurethane Paint DimensionsH×W×D) 356×1100×597mm Low 12IN×2(310mm) Mid 10 Inx2(260mm) High 3IN×2(72mm) N.W. 55Kg
