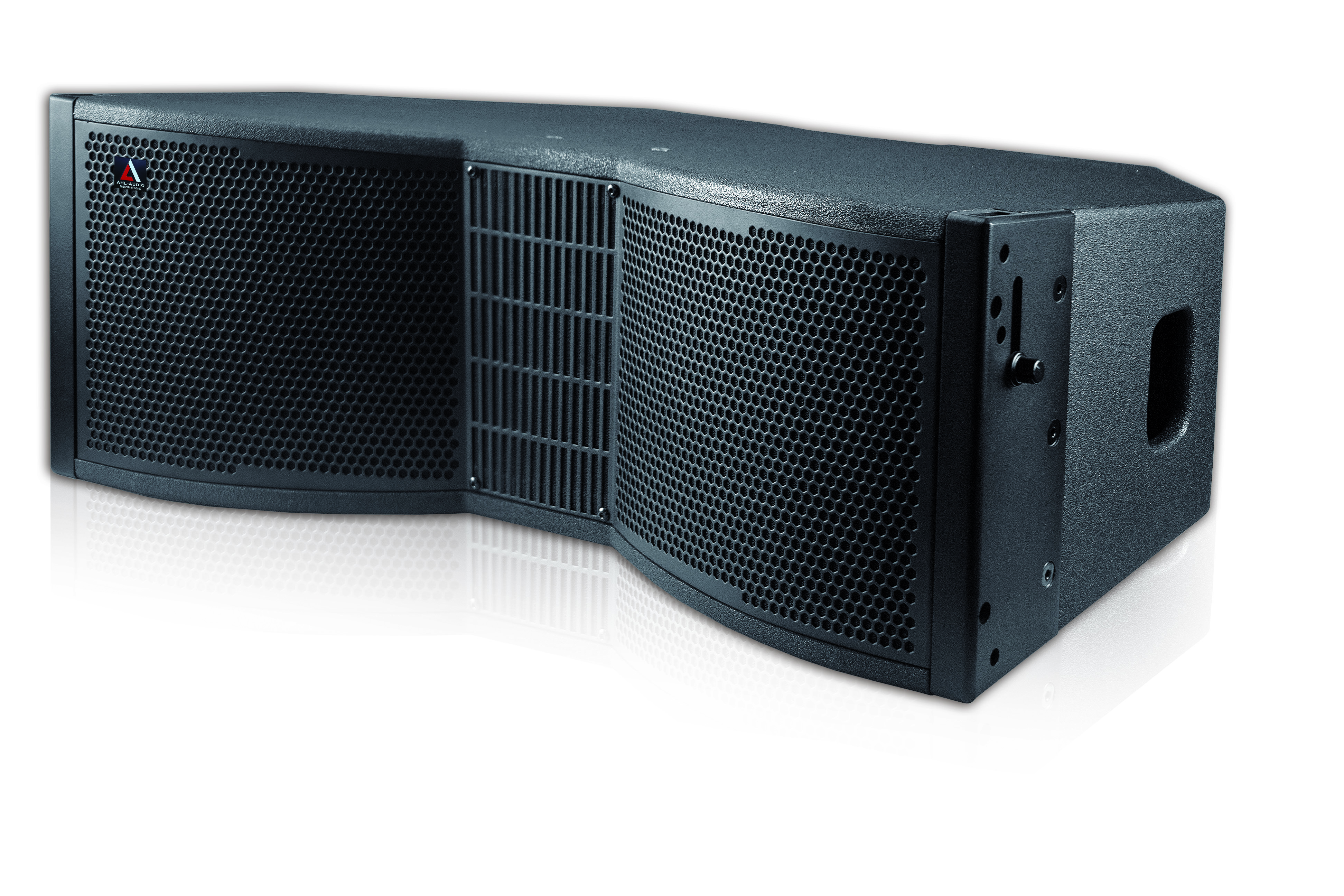

AX-8C+
AX-8C+ have double 8-inch LF nuit, a 3-inch compress driver. AX-8C+system
bring the benefits of line array performance to a wide range of applications
in both portable or fixed-venue installation. AX-8C+ combine to form a
single very high output source of coherent acoustic energy. It is
smaller, lighter, faster loading and rigging, without sacrificing
anything in terms of power, dynamics or detail.
| Model | AX-8C+ |
| Frequency Response | 60Hz-18KHz |
| Directivity Angle | H90°×V10° |
| Long-term Power(RMS) | 120W/500W[HF/MF] |
| Power peak handing | 240W/1000W[HF/MF] |
| Impedance | 8 ohms/8 ohms[HF/MF] |
| Sensitivity | 115dB/108dB[HF/MF] |
| Maximum SPL | 128dB/125dB[HF/MF] |
| Connection | 2×NL 8 speakon |
| Enclosure Construction | 15-Birch Plywood |
| Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
| Dimensions(H×W×D) | 670×268×550mm |
| Low | 8 IN×2[210mm] |
| High | 3 IN×1[75mm] |
| N.W. | 25Kg |
