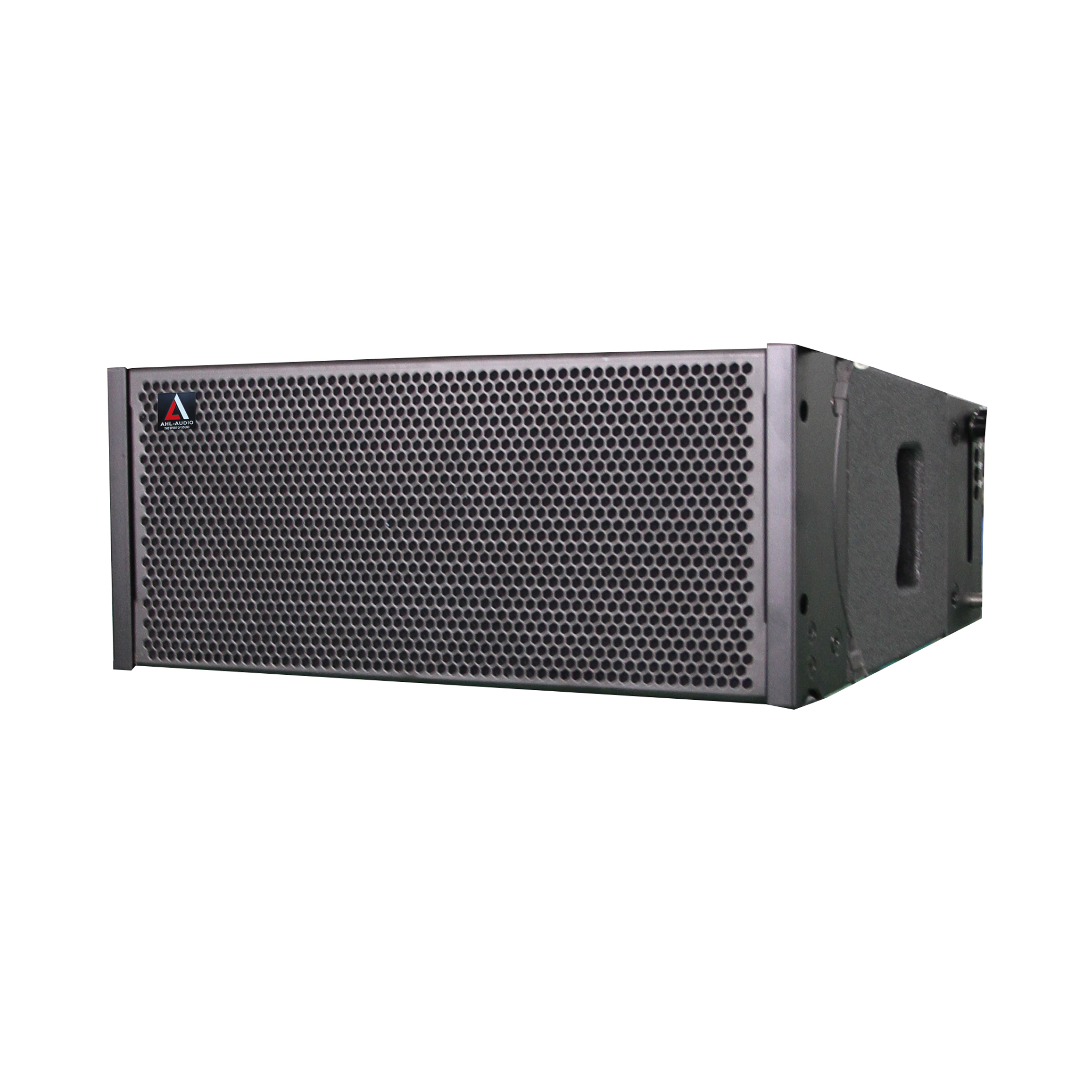

AX-206
AX-206 series line array system is our special mini line array for church,
medium meeting room and opera house use. The whole series use high
power components, its special components and suitable horn
design brings big power, saturated and clear sound, high
sensitivity and along throw function for this line
array system. Small and fashion box design
meet many sites scene requirement,
when you see it you will like it.
| Model | AX-206 |
| Frequency Response | 150Hz-20KHz |
| Directivity Angle | H90°×V10° |
| Long-term Power(RMS) | 60W/150W[HF/MF] |
| Power peak handing | 120W/300W[HF/MF] |
| Impedance | 8 ohms/8 ohms[HF/MF] |
| Sensitivity | 110dB/105dB[HF/MF] |
| Maximum SPL | 132dB/128dB[HF/MF] |
| Connection | 2×NL 8 Waterproof speakon |
| Enclosure Construction | 15-Birch Plywood |
| Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
| Dimensions(H×W×D) | 230×433×300mm |
| Low | 6.5 IN×1[170mm] |
| High | 2 IN×1[44mm] |
| N.W. | 10.50Kg |

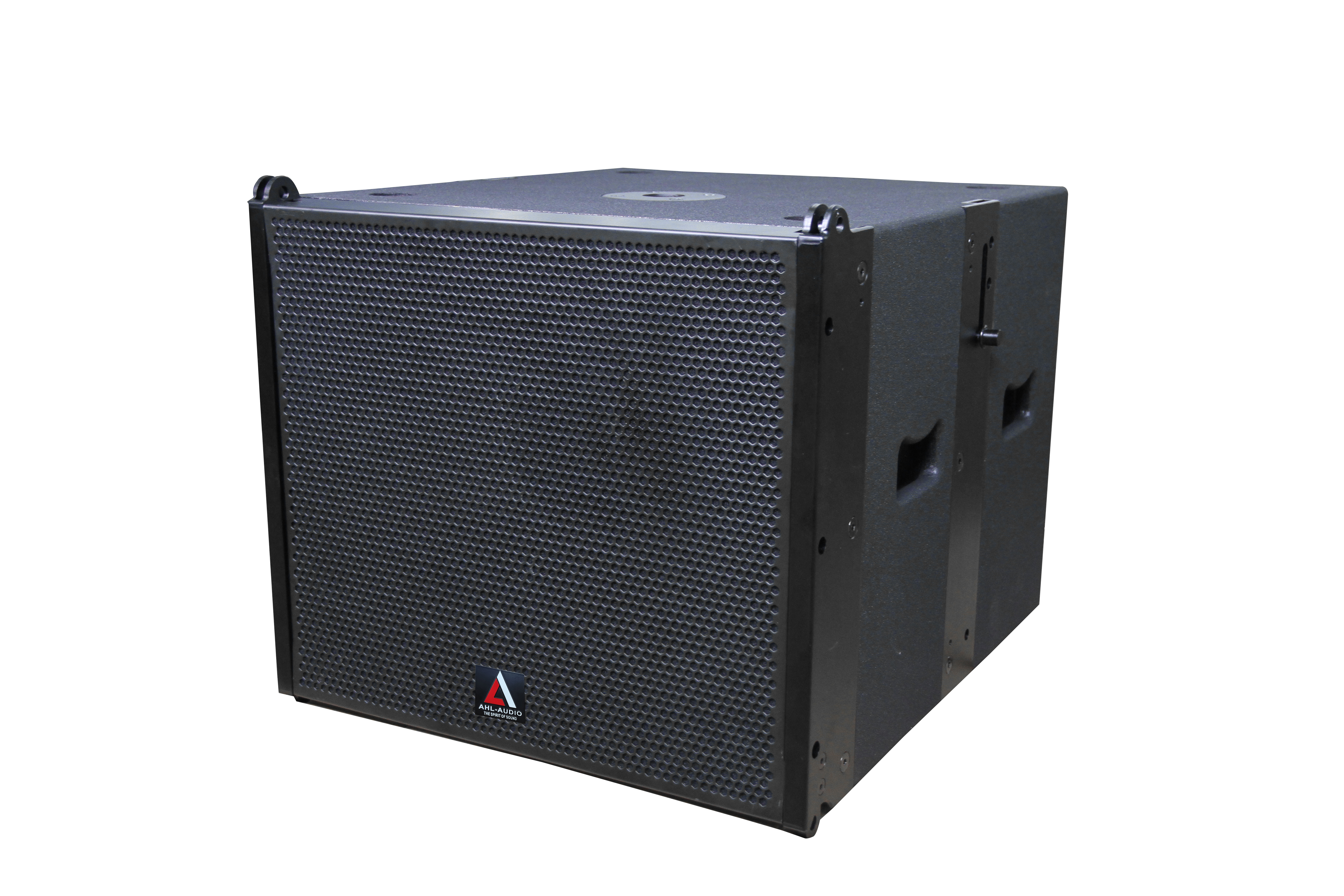

| Model | AX-112B |
| Frequency Response | 65Hz-2KHz |
| Long-term Power(RMS) | 400W |
| Power peak handing | 800W |
| Impedance | 8 ohms |
| Sensitivity | 102dB |
| Maximum SPL | 125dB |
| Connection | 2×NL 8 Waterproof speakon |
| Enclosure Construction | 18-Birch Plywood |
| Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
| Dimensions(H×W×D) | 380×440×450mm |
| Low | 12 IN×1[310mm] |
| N.W. | 21Kg |
