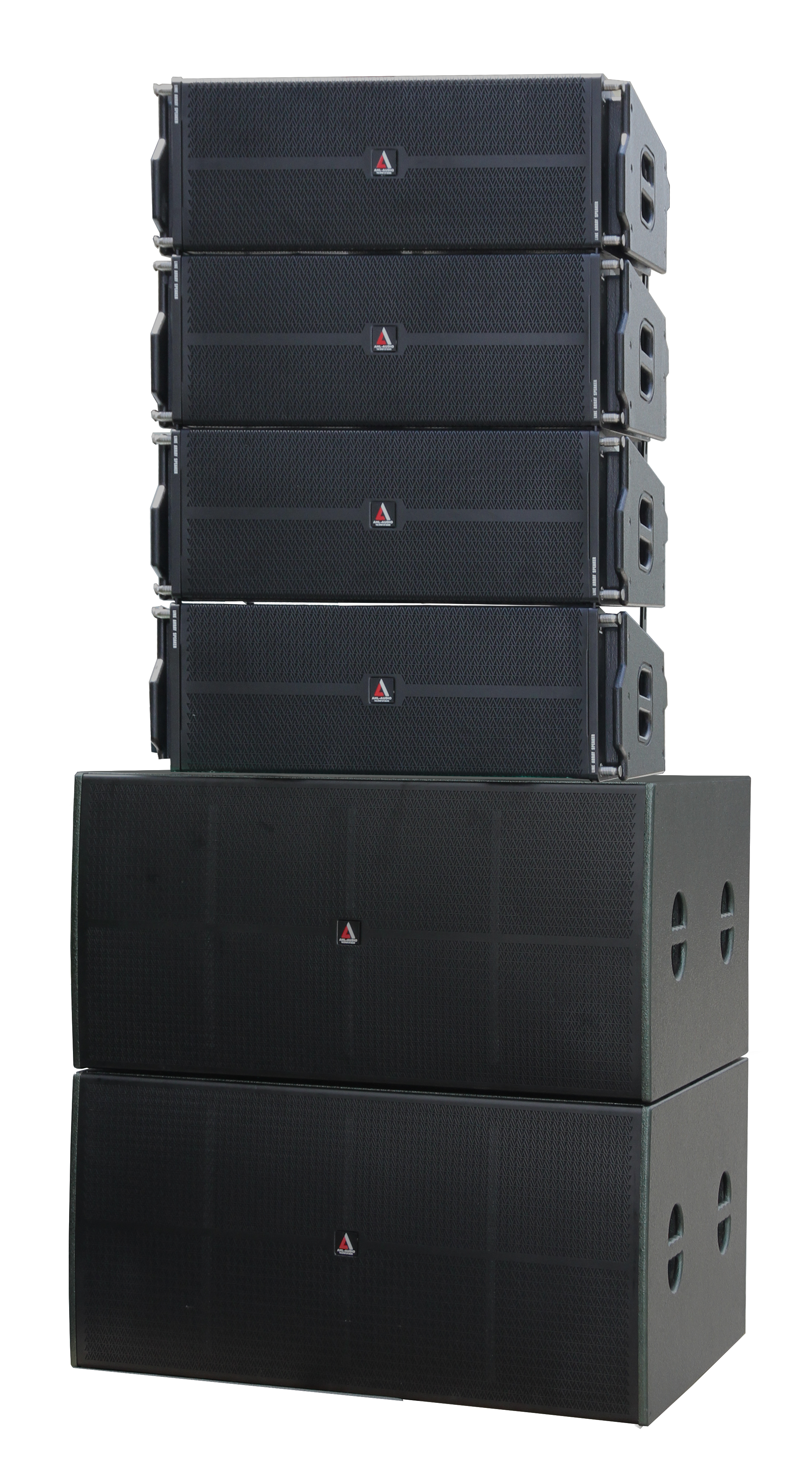

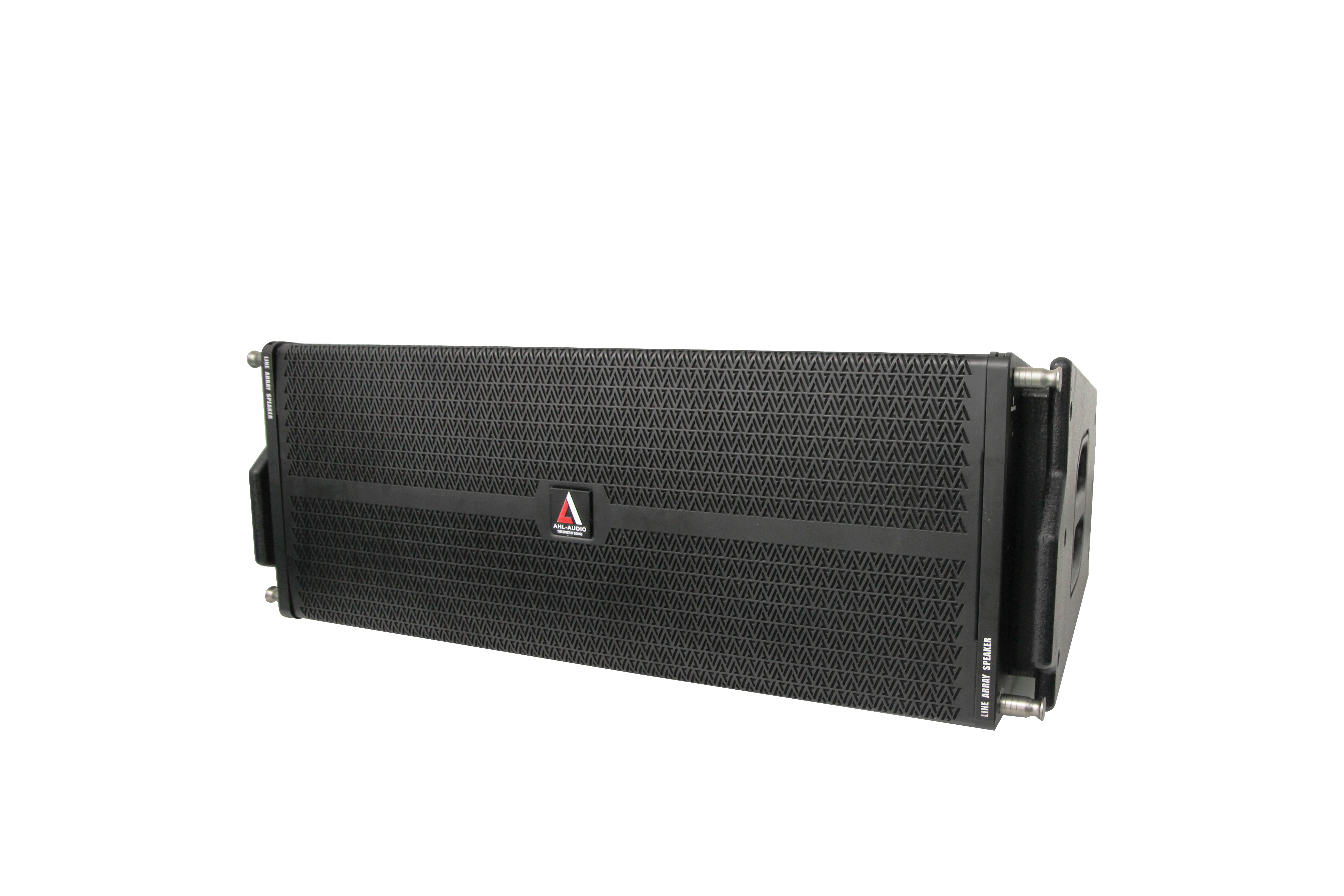

AX-210
AX-210 system bring the benefits of line array performance to a wide range
of applications in both portable or fixed-venue installations. It is design
for high quality sound reinforcement in big and medium venues with
a wide range of applications. The simple fly system is easy to use,
lightweight enclosure, integral rigging mechanisms and
proprietary components are AX-210 strong points.
The AX-210 have double 10"LF unit, two 2"compress drivers
Model AX-210 Frequency Response 60Hz-20KHz Directivity Angle H100°×V10° Long-term Power(RMS) 800W Power peak handing 1600W Impedance 8 ohms Sensitivity 104dB Maximum SPL 138dB Connection 2×NL 8 speakon Enclosure Construction 15-Birch Plywood Cabinet Surface Treatment Black Catalyzed Polyurethane Paint Dimensions(H×W×D) 315×905×450mm Low 10 IN×2[310mm] High 2 IN×2[44mm] N.W. 48Kg
